The integrated security of the facility with an open or water area shall include the detection of intruders on the approaches to the facility in the conditions of a large extent of the protected water area and land, a winding coastline, remoteness of numerous structures (tank farm, loading pumping stations, cargo berths, etc.).
Radar stations of the Orwell-R series (radar system) are a unique security solution for round-the-clock detection and classification of moving targets in all weather conditions, followed by target verification by the operator using automatically guided optoelectronic surveillance equipment.

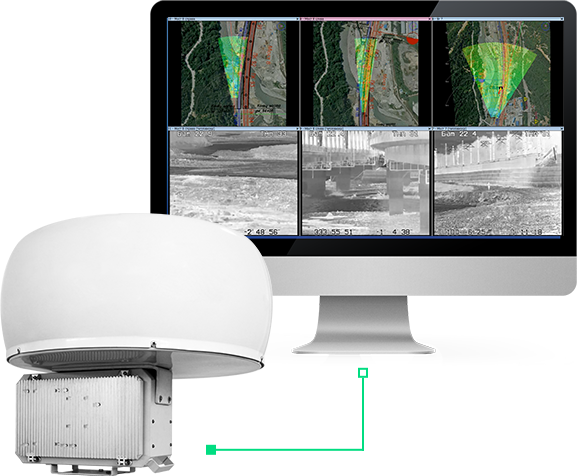

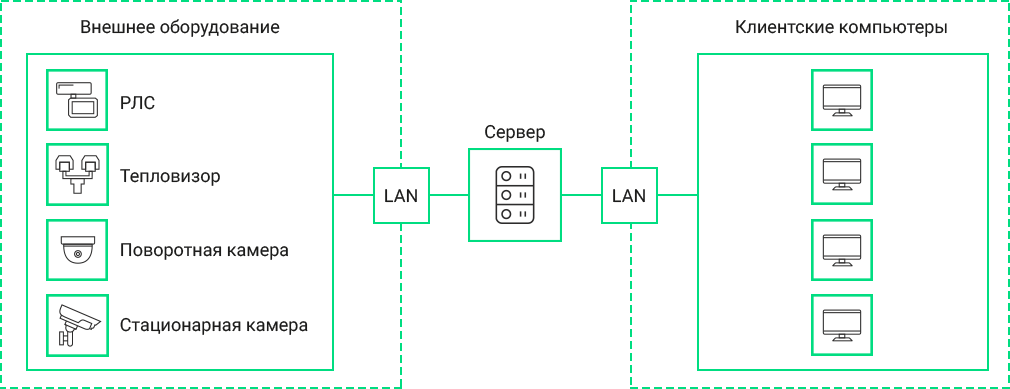

System complete set:
- Radar station;
- Antenna and protective dome;
- Server;
- PC of the automated operator's station.
Key features:
- Automatic detection of targets and sequential positioning of cameras, thermal imagers, searchlights, hybrid PTZ systems on detected targets. The operator receives visual and sound signals when a target appears in the alarm zone;
- Determining the parameters of detected targets: coordinates, time, speed, motion vector and target class;
- Classification and tracking of moving targets (person, group of people, vehicle, ship, train, heavy traffic area) within the radar detection zone;
- High probability of detecting moving targets at a distance of up to 1.5 km in a field of view up to 360 degrees, including water-land sites;
- Archiving of radar and video information. Handling archived video images synchronized with archived location of targets;
- Simultaneous operation of several radars and verification tools interacting in a single system at one facility;
- Simultaneous display of all means of detecting and verifying a target on the map—radar, video cameras, thermal imagers, perimeter and other sensors with appropriate detection and viewing areas.
Key benefits:
- Low radiated power, the radar is safe for humans and the environment;
- Round-the-clock and all-weather operation (operating temperature range from −50°C to +50°C);
- Automatic guidance of PTZ cameras and thermal imagers at the detected targets as directed by the radar;
- Low level of false positives;
- Reducing the negative impact of the human factor.
