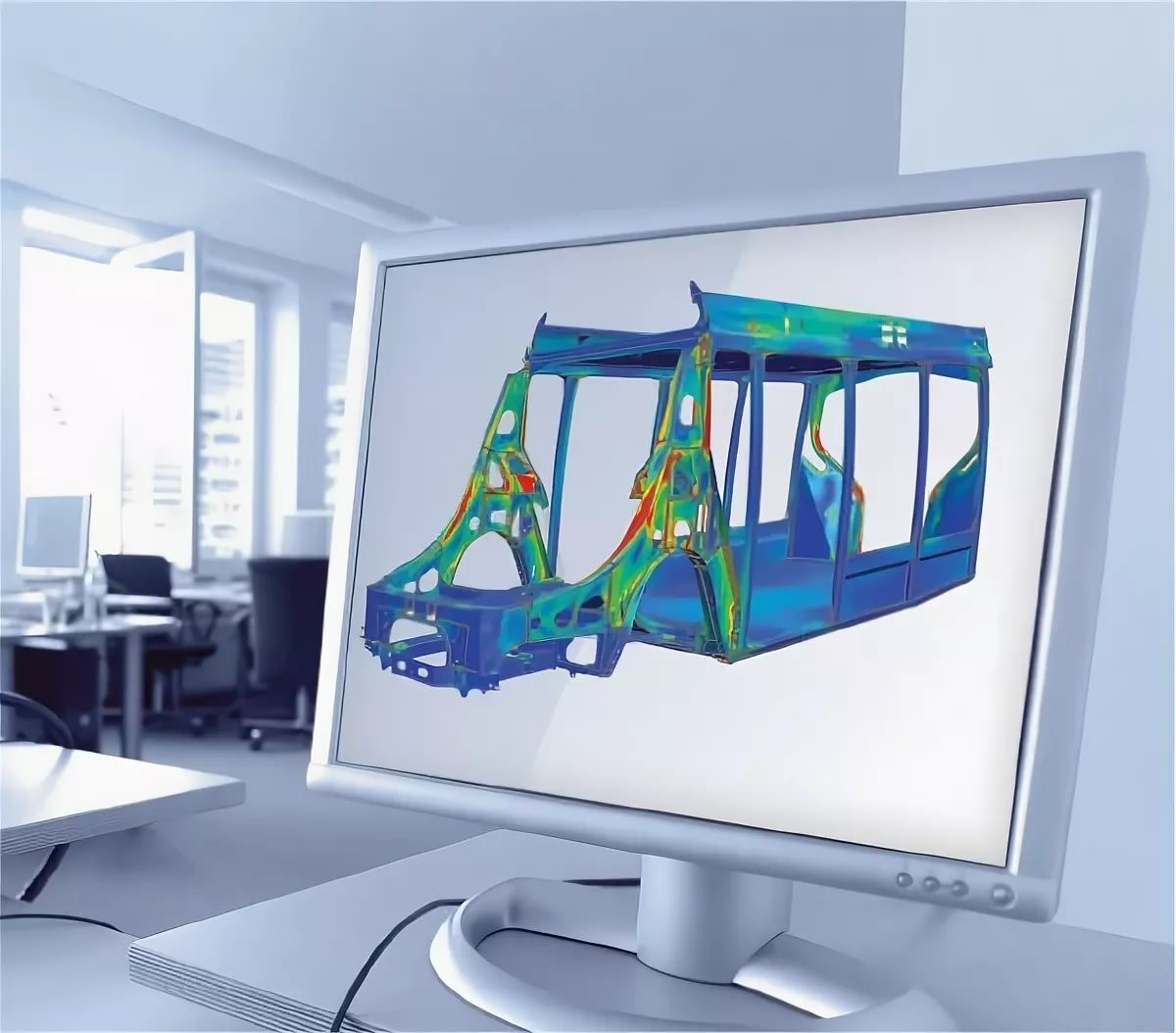

NX™ Nastran is a tool for CAE analysis of designed products using the finite element method. Together with additional solvers, NX Nastran is used to tackle both static and dynamic linear and non-linear engineering analysis issues.
Using this solver makes it possible to quickly model and analyze more options and concepts, allowing engineers to design innovative products faster and at a lower cost.
Key features:
- Complete set of calculations, including the calculation of the stress-strain state, safety factors, natural frequencies and vibration modes, analysis of the stability of objects, solving heat transfer problems, acoustic phenomena, etc.;
- Analysis of frequency characteristics, response to dynamic and random influences;
- Spectral analysis;
- Acoustic analysis;
- Aeroelasticity analysis;
- Simulation of almost all types of materials, including composite and hyperelastic ones;
- NX Nastran can be used both as standalone and Simcenter 3D-integrated solver;
- Enhanced version of Nastran includes super-element (sub-construction) technology, modal synthesis, and DMAP macro language for building custom applications.
Key benefits:
- Speeding time to market for innovative products;
- Reducing the cost of physical prototyping;
- Reducing the cost of design changes;
- Improving product quality.
